TIG Tungsten Sharpener Head Tool Tungsten Grinder for TIG Welding with 4 Cut-Off Slot Multi-Angle & Offsets TIG Welding Tool

ALUMINUM Tungsten Electrode Sharpener Grinder TIG Welding Tool Single Column Open Design w/Cut-Off Slot Multi-Angle &Offsets, Horizontal HoleThis tungsten grinder head features offset angles of 10°，15°，20°, and 22.5°Functional FeaturesGrinder head is that the traces may be slightly curved(Quite slight, and it's an unavoidable problem with grinding on rotating objects), but the angle is accurate, the weight is light, easy to carry and use, and cost-effective.Easy to operate:1. Unscrew the top collar on Rotary Tool, and choose the correct size collet for the 1/8” mandrel.2. Install the Angle Controller.3. Connect the mandrel with the Diamond wheel, and set it in your rotary tool.4. Adjust the height of the diamond wheel. Screw the collet when you are sure the Below of the Long window is on the same PLANE as the top face of the diamond wheel.Package Includes: 1x Angle controller2x CNC connecting rod5x Diamond grinding wheelIt will give you a good experience, We will provide you with satisfactory service.

• ✔Open Design: Upgrade Open single foot column support design(Tested by fall resistance), make installation more convenient and quick. Adds a Horizontal Hole so that cleanup tungsten electrodes that have picked up metal during welding easily. The tungsten sharpening tool also has tungsten cut-off port processing. After the tungsten you are using is worn or contaminated, you can use the cut-off port for cutting so that you can use it again.

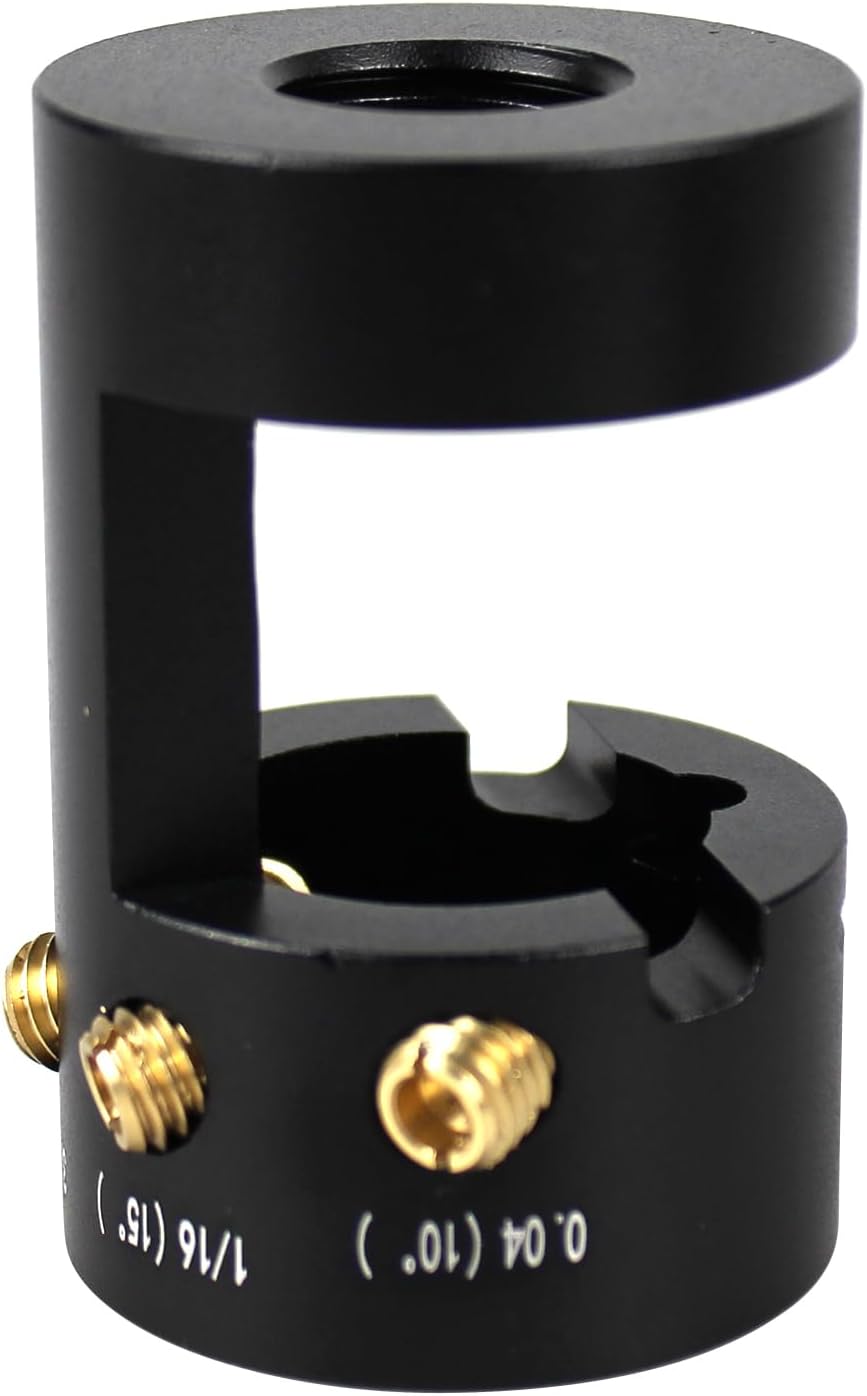

• ✔Tungsten Electrode Size: ALUMINUM Grinder Head comes with 4 Brass Tungsten Guide Screws: 0.04", 1/16", 3/32" and 1/8" (1mm, 1.6mm, 2.4mm, 3.2mm). The guides ensure concentricity and multi-offset. Increase the utilization of the grinding wheel. Upgraded Brass Guides & Mandrels are CNC forging, Will have higher accuracy.
• ✔Offset Angles: This tungsten grinder head features offset angles of 10°, 15°, 20°, and 22.5° (45°, 40°, 30°, 20° Tips Angle respectively), providing you with flexibility and precision in sharpening your tungsten electrode for optimal welding performance.
• ✔Premium Quality: Crafted from aluminum alloy, this grinder head is lightweight and convenient to use, while still providing exceptional strength and precision for your tungsten electrode sharpening needs. Precise control makes Upgraded grinding tools will grind a More perfect tungsten tip angle.

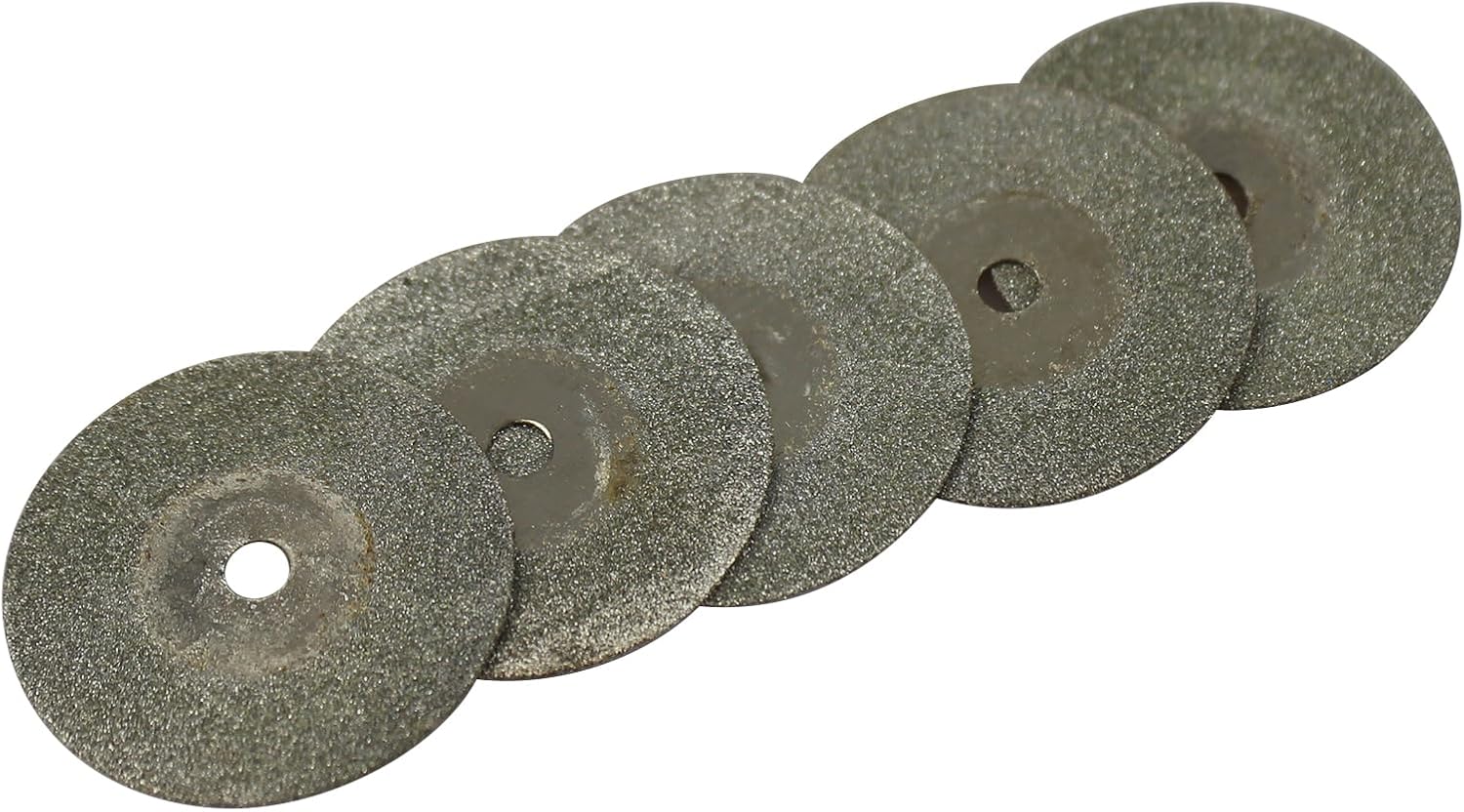

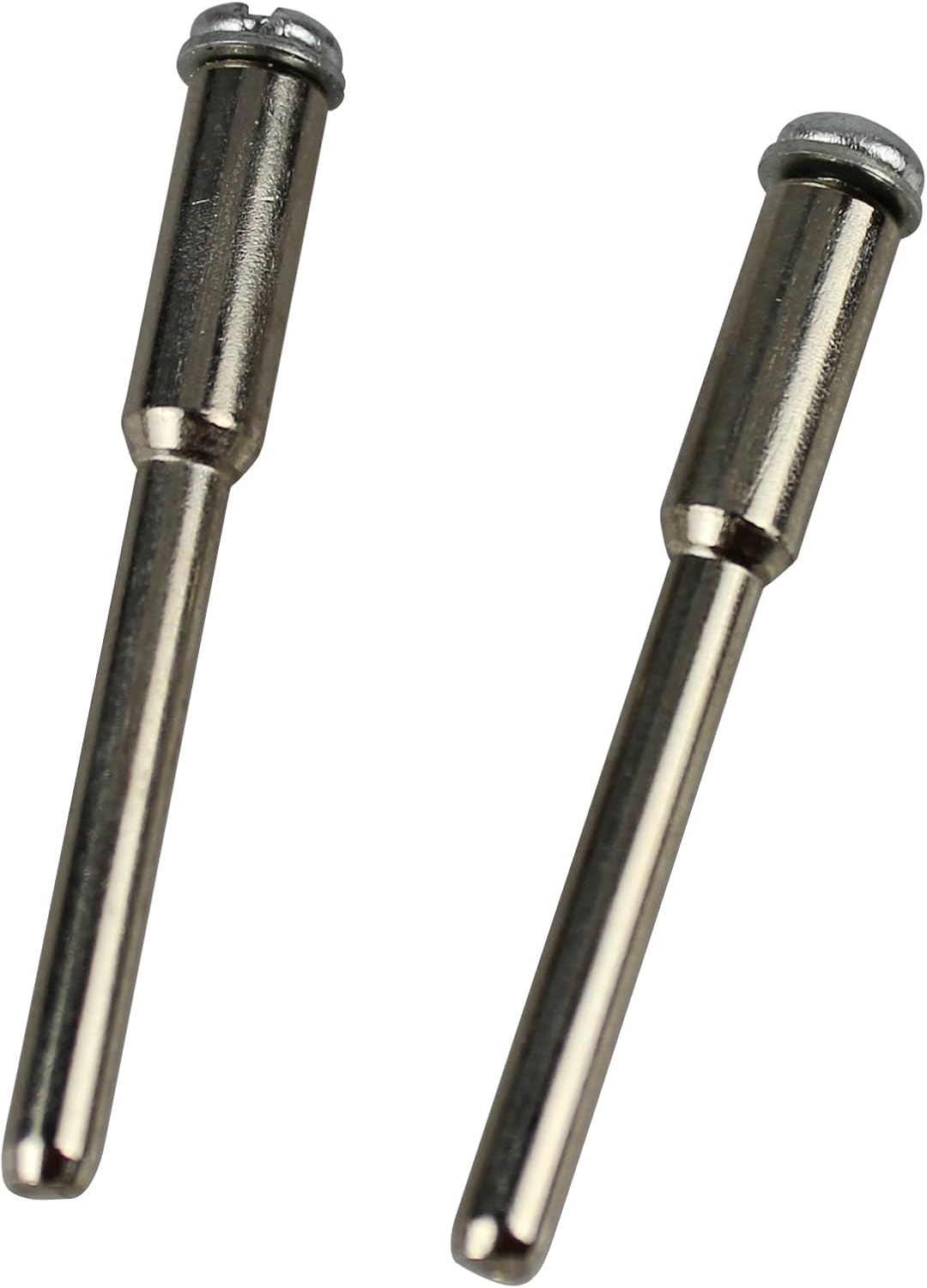

• ✔Easy to operate: Replacement Diamond Grinding Discs and CNC mandrels: Each set includes 5 replacement diamond grinding wheel and 2 CNC mandrels, allowing you to easily replace worn-out discs and continue sharpening your tungsten electrode with ease and efficiency.
