PSEQT 12V Fuse Block, 4 Circuit Blade Marine Fuse Panel Box with LED Indicator, Waterproof ATO Blade Fuses Block Holder Relay Box Kit with Protection Cover for 12V/24V Car Boat Truck Trailer Bus
US$6.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by karaoke4hire.co.uk
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$6.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by karaoke4hire.co.uk
Free 30-day returns Details
Product details
| Management number | 234062988 | Release Date | 2026/06/27 | List Price | US$6.40 | Model Number | 234062988 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Single-sided 1-input 4-output 4-Way Fuse Box: The fuse holder is a device used for circuit protection. It has 1 input interface and 4 output interfaces, dividing a single power input into four independent circuit outputs, making it convenient to supply power to multiple different electrical devices simultaneously
- Application Scenarios: Automotive/Marine Boat field: Widely used in trailer, truck, buse, golf cart, RV, SUV, ATV, UTV, van, hay mower, boat trailer, small boat, yacht, pontoon boat, kayak, hovercraft, fishing boat, etc. Fit for various types of electronic devices, such as car lights, boat lights, car audio, car refrigerators, communication equipment, power distribution devices, monitoring equipment, alarm devices, etc
- Parameters: Main line: M5 threaded stud. Single line: M4 threaded stud. The maximum total input current is 150A, the single continuous current is less than 40A, and the voltage is less than DC 80V. Fuse type: Standard ATO; Overall dimensions (with cover) : 3.74"x 2.04" x 1.5"
- Overload Protection: 4-way fuse box contains 4 main output channel slots and 1 spare slot (no electricity), and is equipped with 5 fuses of different specifications (5A/7.5A/10A/15A/20A). When the current in the circuit exceeds the rated current of the fuse, the fuse will melt and cut off the circuit, thereby protecting the connected equipment from damage and avoiding potential safety hazards caused by overcurrent, such as short circuits and equipment damage
- Circuit Operation Status Indication: Each of the four main fuse slots is equipped with LED lights, which can visually display the working status of the circuit. If the LED light is not on, it indicates that the circuit is powered on normally. When the LED light turns red, it indicates that there are faults such as overload or short circuit in the circuit, and the fuse has blown. It is necessary to check the circuit condition in time and replace the fuse

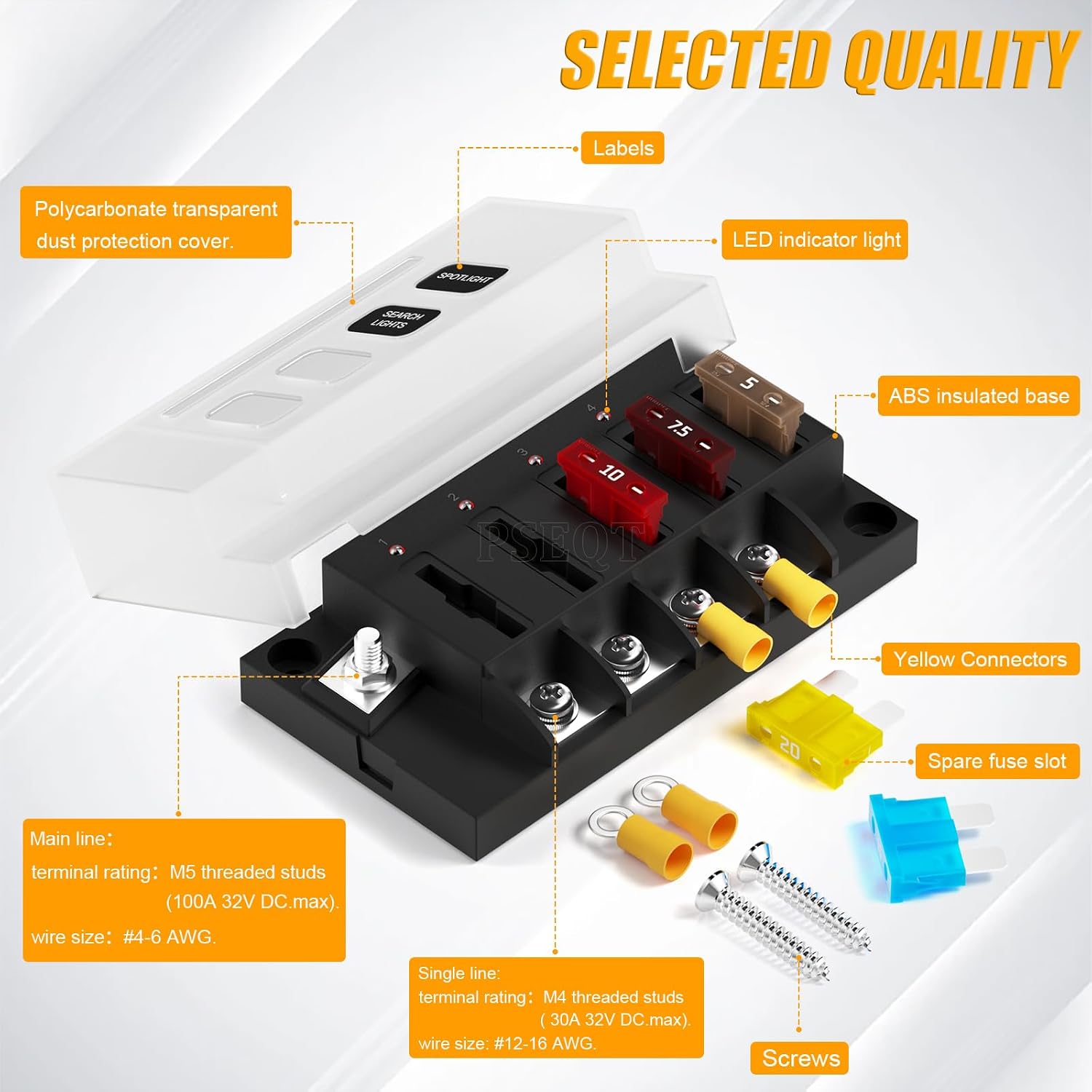

- Selected Materials: The main material of the fuse box is PA66 + GF15%, and the contact terminals are made of nickel-plated copper, which is more sturdy and durable. The transparent protective cover is made of polycarbonate material, which is dust-proof and splash-proof, easy to install and disassemble, and can well protect the interior of the fuse box
- Installation Instructions: 1. Power-off operation: Before installation, be sure to cut off the power supply first. 2. Correct wiring: Connect the input wire to the correct interfaces and the output wires to the corresponding load devices respectively, ensure that the wiring is firm. 3. Fixed installation: Use screws to install and fix the fuse box at the required location
- Accessories include: 1 4-way fuse box body, 1 each of 5A/7.5A/10A/15A/20A fuse pieces, 4 yellow connectors, 2 screws, 2 stickers, and 1 transparent cover
| ASIN | B0F5GRJSKL |
|---|---|
| Model | PSEQTFM041P |
| Brand Name | PSEQT |
| Unit Count | 1.0 Count |
| Part Number | PSEQTFM041P |
| Manufacturer | PSEQT |
| Material Type | PA66 + GF15%, PC Cover, nickel-plated copper terminals |
| Mounting Type | Chassis Mount |
| Included Components | 4-Way Fuse Block, Transparent Cover, fuses, Label Stickers, yellow connectors |
| Warranty Description | 1 Year Warranty |
