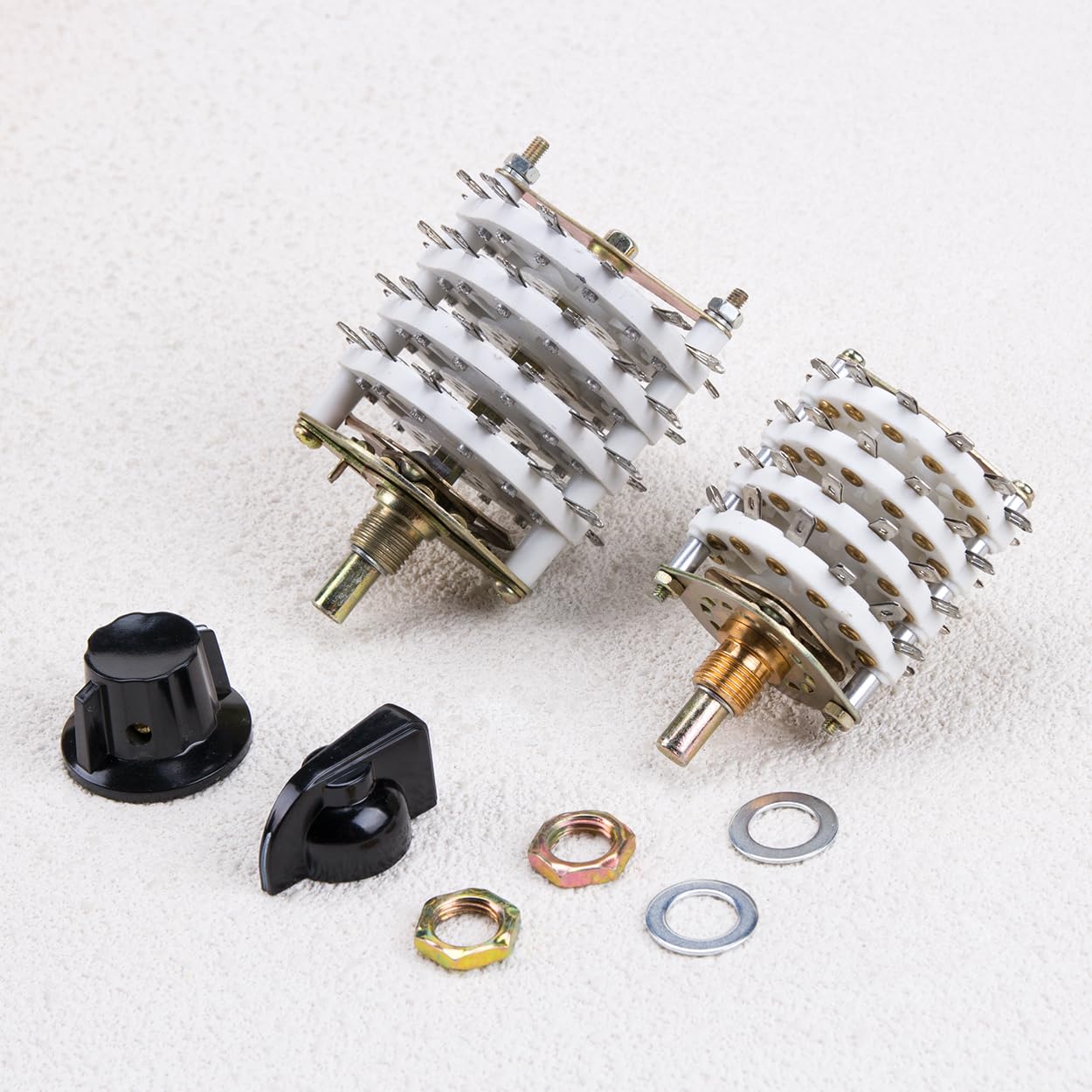

KOOBOOK 2Sets KCZ KCT 4 Pole 11 Position Rotary Band Switch 300V 0.3A 4P11T Multi-Pole 4 Deck Waveband Selector Switch with Potentiometer Knobs RV24 RV30 WTH118 RS25 for TV and Electronic Devices
Product details
| Management number | 247481869 | Release Date | 2026/08/16 | List Price | US$4.96 | Model Number | 247481869 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This professional-grade rotary band switch is an essential component for audio equipment, televisions, and various electronic devices requiring precise multi-position switching. The 4-pole, 11-position configuration provides versatile signal routing capabilities, making it ideal for channel selection, frequency band switching, and circuit configuration applications. Built with a robust 4-deck waveband design, this switch delivers reliable performance with a working voltage of 300V and rated current of 0.3A. The switch features impressive electrical specifications including a withstand voltage of 1000VAC and insulation resistance ranging from DC500V to 1000MΩ, ensuring safe and dependable operation. Engineered to perform in demanding conditions, it operates flawlessly in temperatures from -67°F to 185°F. The package includes two complete rotary band switches along with matching potentiometer knobs compatible with RV24, RV30, WTH118, and RS25 models, plus all necessary mounting hardware including washers and nuts. The compact design features precise dimensions optimized for easy installation in various electronic assemblies. Whether you're repairing vintage electronics, building custom audio equipment, or working on DIY electronic projects, this multi-pole selector switch provides the quality and versatility professionals demand.
- COMPLETE KIT: 2 sets of 4 Pole 11 Position rotary band switches with included potentiometer knobs (RV24 RV30 WTH118 RS25), washers, and nuts for easy installation
- ELECTRICAL SPECIFICATIONS: Working voltage of 300V with 0.3A rated current, withstand voltage of 1000VAC, insulation resistance DC500V-1000MΩ, and reversing force of 1-5NM
- MULTI-POLE CONFIGURATION: 4P11T (4 Pole 11 Throw) 4 deck waveband selector switch design allows for complex circuit switching applications in TV and electronic devices
- DURABLE CONSTRUCTION: Wide operating temperature range of -55°C to 85°C (-67°F to 185°F) ensures reliable performance in various environmental conditions
- COMPACT DIMENSIONS: Smaller switch measures 1.66 x 2.62 inches (42 x 66.5mm), larger switch measures 2.16 x 3.22 inches (55 x 82mm), with included control knobs for convenient operation.Rotating diameter: 6mm(1/4"),Shank Length: 20mm
| UPC | 717710360224 |
|---|---|
| ASIN | B0GF6SGGXC |
| Color | Multi-color (white, Silver, Gold, Black) |
| Model | Kcz Kct 4p11t |
| Wattage | 90 watts |
| Terminal | Through Hole |
| Brand Name | KOOBOOK |
| Unit Count | 2 Count |
| Part Number | Kcz-kct-4p11t |
| Switch Type | Rotary |
| Circuit Type | 4-way |
| Contact Type | Normally Closed |
| Manufacturer | Koobook |
| Material Type | Plastic, Metal Contacts |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Current Rating | 3 A |
| Operation Mode | Normally Closed |
| Item Dimensions | 0.11 x 0.11 x 6969.6 inches |
| Number of Items | 2 |
| Contact Material | Silver |
| Operating Voltage | 300 volts |
| Specification Met | UL |
| Included Components | Knobs |
| Number of Positions | 2 |
| Insulation Resistance | 1000 megaohms |
| Upper Temperature Rating | 85 °C |
| International Protection Rating | Ip67 |
