25A Rotary Changeover Switch with Exterior Box for Solar Power System, 3 Position 2 Phase 8 Terminals, 2-Way 2NO 2NC Universal Selector Switch 25/D202.2D
Product details
| Management number | 247481794 | Release Date | 2026/08/16 | List Price | US$6.36 | Model Number | 247481794 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

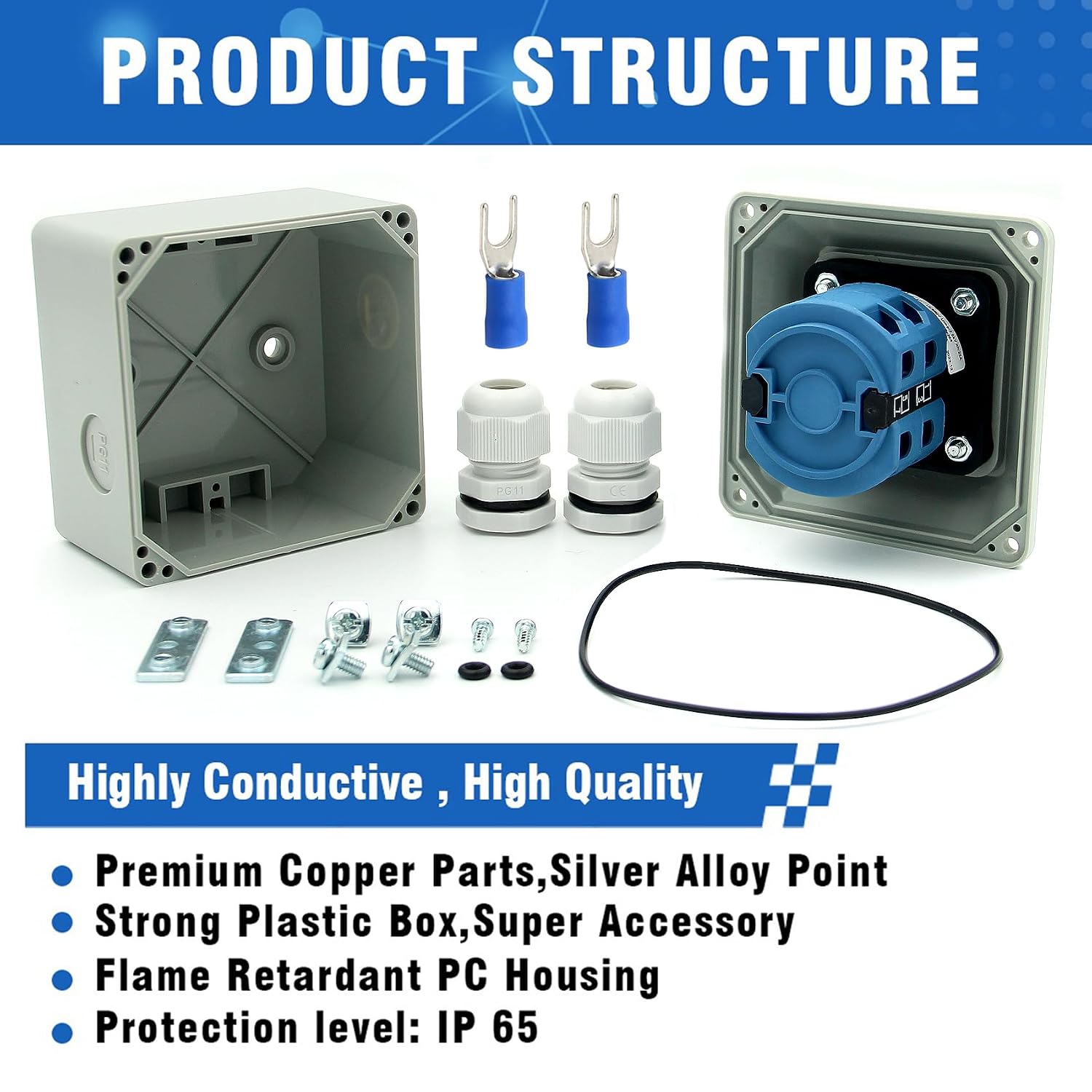

More Choices : The more size B0BRZ45J2Z,B0C7PDMYYY,B0C5Y4XGRZ,B0CG6PYRJ4,B0C9R1VVZ5 is optional if you need the bigger size Exterior Box .Thank you for your Shopping. Premium Material The Rotary Changeover Switch is made of Flame Retardant Shell,IP 65 grade Stronge Exterior Box.The premium Silver Alloy Point, low resistivity, good conductivity, long service life.The connecting parts are made of thickened galvanized copper,abrasion resistance and oxidation resistance.Stronge screws and Terminals, locking action type,made by high quality, keep safety and durability.Easy to Operate Adjusting handle design with stronge knob, 3 gears can be adjusted.Clear panel indication, good sealing and dust-proof performance.It's easy to install and disassemble ,easy to operate and control by new operator according to Instruction.Widely Application Circuit control switchesTest equipment switchesMotor control switches Master control switchesSignal transfer switchesSpeed switches and other equipment Also details forAutomatic Control Machine ToolSolar Panel SystemElectrical MotorBoat Lift MotorAir CompressorGeneratorInverterRV and Etc.
- 【Parameter】Ui: 660V,Ith: 25A
- 【3 Positions】1-0-2 = ON-OFF-ON, 2 Poles, 8 Terminals
- 【Size】3.15 In. x 3.15 In. x 3.5 In. (LxWxH), 【Weight】0.59 lbs
- 【Material】Flame Retardant PC Housing,Excellent copper parts with Silver Alloy Point
- 【What You Get】Cam Switch ,Terminals, Mounting Accessories , MANUAL, 2 Year Warranty, Friendly Customer Service.
| ASIN | B0CQXTMW7K |
|---|---|
| Color | Grey |
| Model | SZW26-25/D202.2D |
| Terminal | Screw |
| Brand Name | Keymoo |
| Unit Count | 1 Count |
| Part Number | SZW26-25/D202.2D |
| Switch Type | Rotary |
| Circuit Type | 2-way |
| Contact Type | 2no 2nc |
| Control Type | 3-position |
| Manufacturer | KEYMOO |
| Actuator Type | Rotary |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 25 A |
| Operation Mode | ON-OFF-ON |
| Item Dimensions | 3.15 x 3.15 x 3.5 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 660 volts |
| Specification Met | CE |
| Compatible Devices | Solar Panel System, Electrical Motor, Boat Lift Motor, Air Compressor, Generator, Inverter, RV |
| Included Components | Switch,Exterior Box,Mounting Accessories |
| Number of Positions | 3 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 40 °C |
| International Protection Rating | IP65 |
| EU Spare Part Availability Duration | 2 years |
