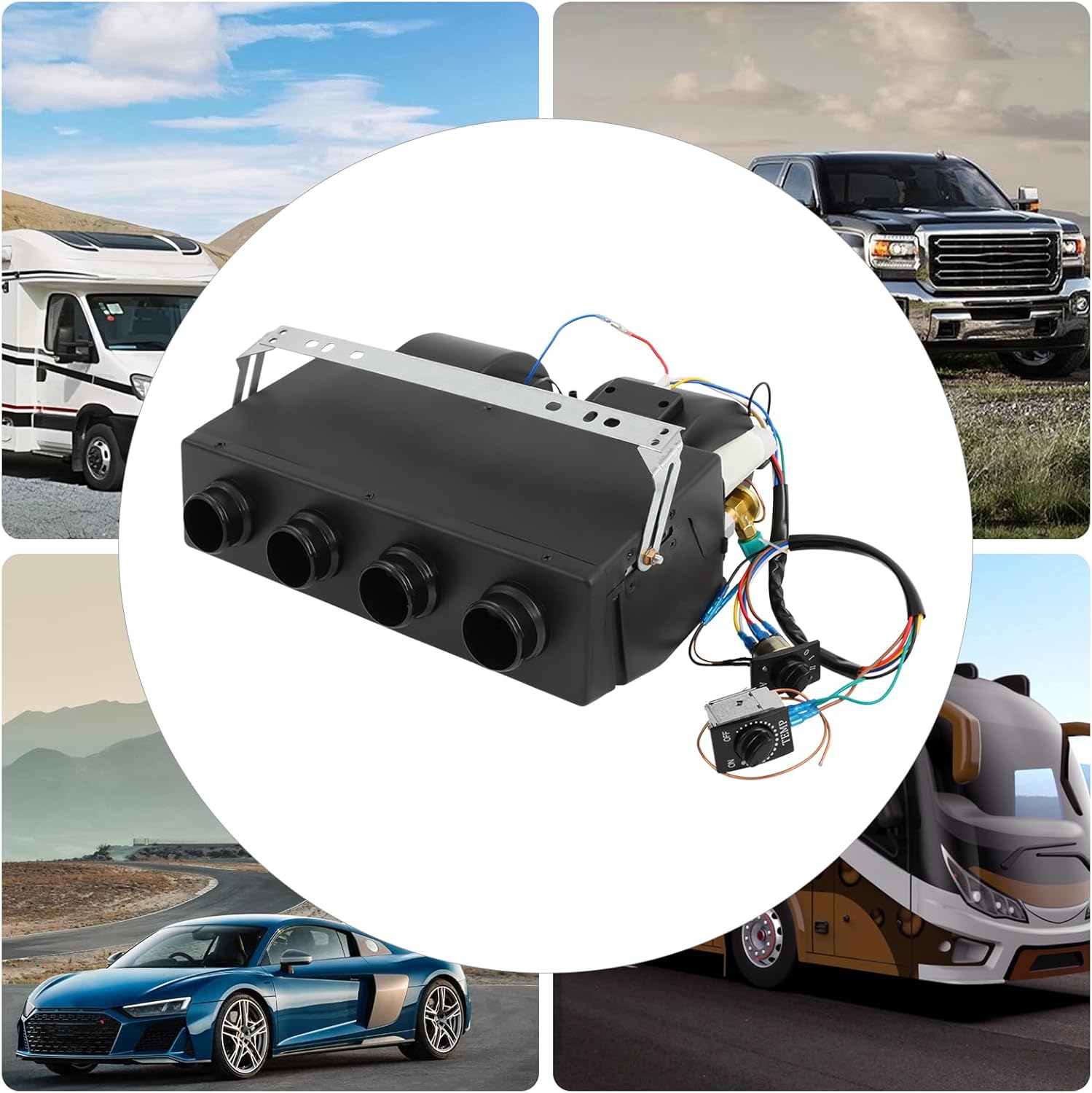

Universal Air Conditioning Evaporator, 80W Truck AC Evaporator Kit with 3300kcal/H Cooling, 3 Speed Adjustable for RV Truck Van Bus (12V)

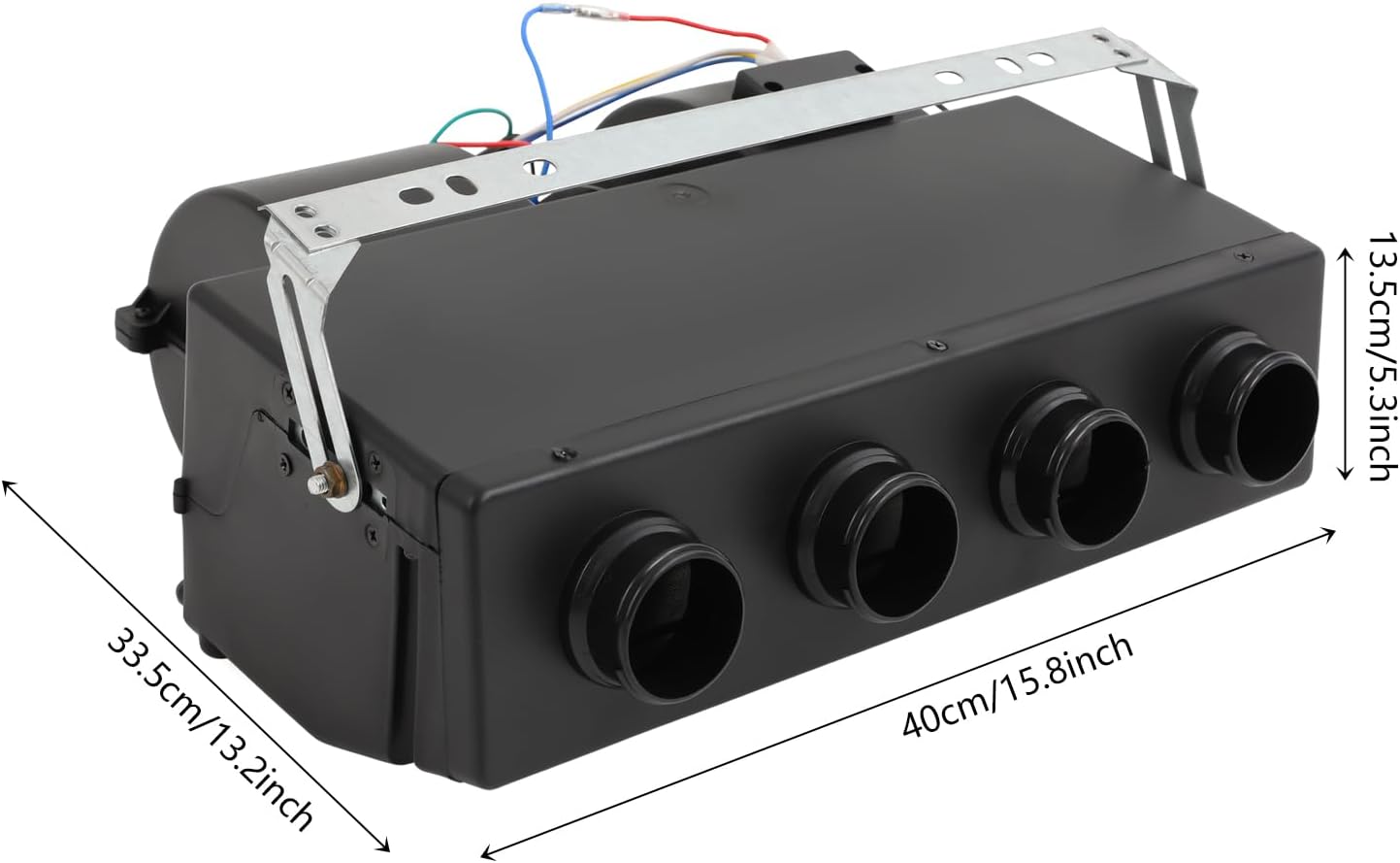

DescriptionThis truck air conditioning evaporator has a compact design and powerful functions, making it an ideal choice for long-distance transportation. Four air outlet holes can provide an even distribution of cold air, ensuring a comfortable temperature inside the car. The control knobs allow you to easily adjust wind speed and temperature to meet different needs. In hot summer, it can provide you with a much cooler driving experience. ApplicationThis product is suitable for classic cars, RVs, trucks, agricultural vehicles, construction vehicles, and heavy equipment.SpecificationMaterial: ABSColor: BlackProcess: Injection MoldingStyle: ModernInstallation Required: YesControl Mode: Manual TypeInstallation Type: Split MechanismTemperature Control: MechanicalMotor Type: Copper Wire MotorVoltage: 12V/24VCurrent: 8A/4APower: 80WNoise: 65dBWind Speed: 3 LevelsTemperature: 3-8°C/37.4-46.4°FMax. Air Volume: 680m³/H/400CFMCirculating Air Volume: 440m³/H/258CFMRefrigeration Capacity: 3300kcal/HNumber of Cold Aluminium Tubes: 32Drain Hose Length: 1m/3.28ftApplicable Cooling Agent: R12(Not Included)Product Size: 40*33.5*13.5cm/15.8*13.2*5.3inPackage Size: 46*41*20cm/18.11*16.14*7.87inGross Weight: 4.6kg/10.14lbsNet Weight: 4.37kg/9.63lbsEach Package Included1* Air Conditioning Evaporator1* Drain Hose2* Installation Brackets1* T-tubeNotes1. Please note that this product only has a cooling function, not a heating function.2. For great installation and results, it is highly recommended to use a professional for the installation.3. This product is not a complete air-conditioning mechanism and needs to be matched with other air-conditioning accessories such as compressors, condensers, and drying bottles (all not included).4. Please note that the installation angle should be within the range of more than 5° and less than 35°. Drainage holes should be located at a low horizontal level to ensure that water can drain out smoothly. Please do not install the unit in an upright position or upside down.5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

• ❄️【Powerful 3300kcal/H Cooling Capacity】: Equipped with 32 high-efficiency aluminum tubes, this AC evaporator delivers strong cooling performance up to 3300kcal/h. Perfect for beating summer heat and maintaining comfortable temperatures in large vehicle cabins
• 🌬️【3-Speed Adjustable & Wide Temp Range】: Features three fan speeds and temperature adjustment from 37.4-46.4°F (3-8°C). The 400CFM maximum air flow ensures rapid cooling distribution throughout your vehicle interior
• 🔧【Universal 12V/24V Compatibility】: Works with both 12V and 24V electrical systems, making it compatible with most trucks, RVs, buses, and heavy equipment. Copper wire motor ensures quiet operation (65dB) and reliable performance
• 🛡️【Durable ABS Construction】: Made of high-quality ABS with injection molding process, this evaporator is impact-resistant, corrosion-resistant, and built to withstand rigorous use in commercial and personal vehicles

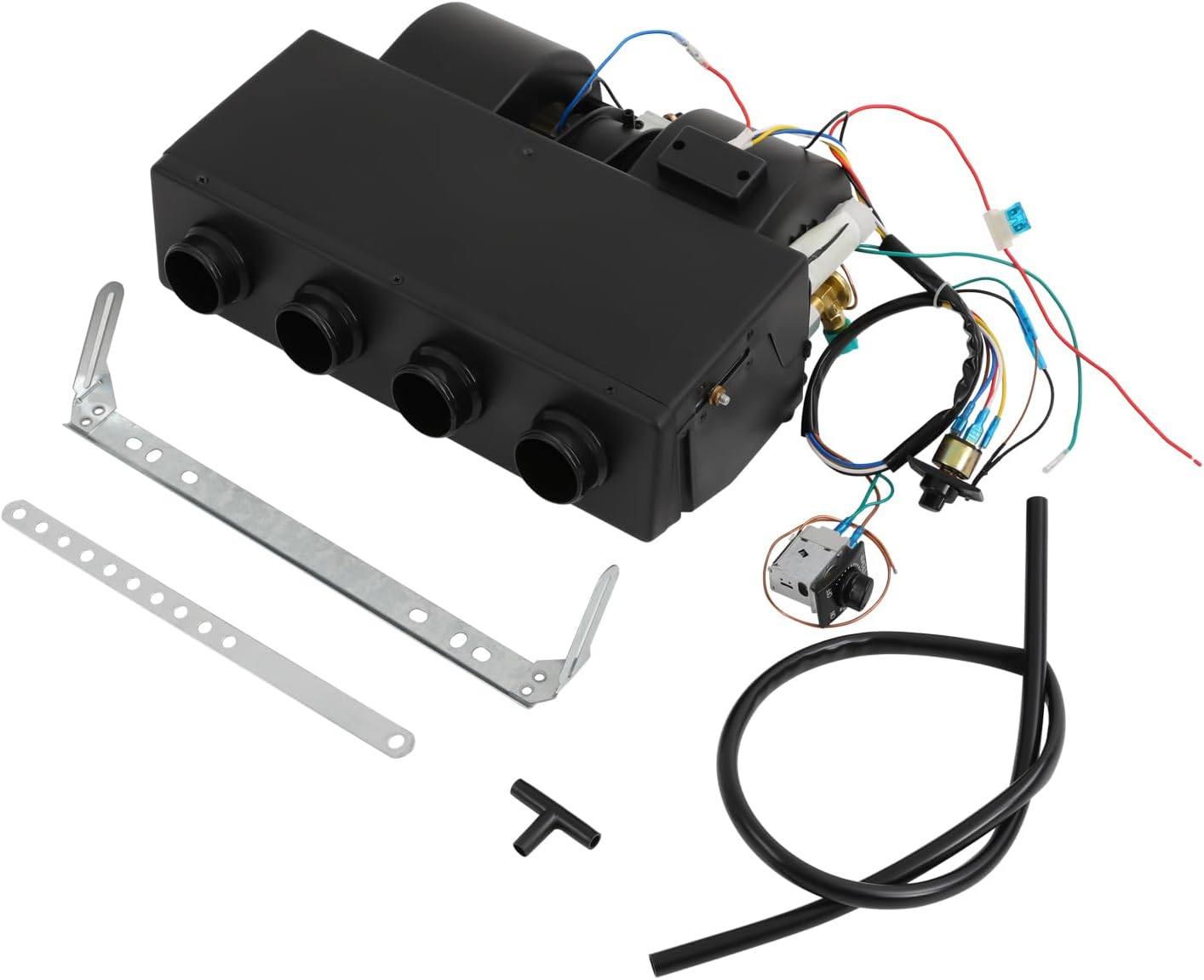

• 📦【Complete Kit with Accessories】: Includes evaporator, drainage hose (3.28ft), T-tube, and installation brackets. Note: Requires professional installation and matching with compressor, condenser, and drying bottle for complete AC system
