Elecom DPA-SS11WH Monitor Arm, Compatible with 17-49 Inches, Load Capacity 44.1 lbs (20 kg), Gas Spring Type, VESA White

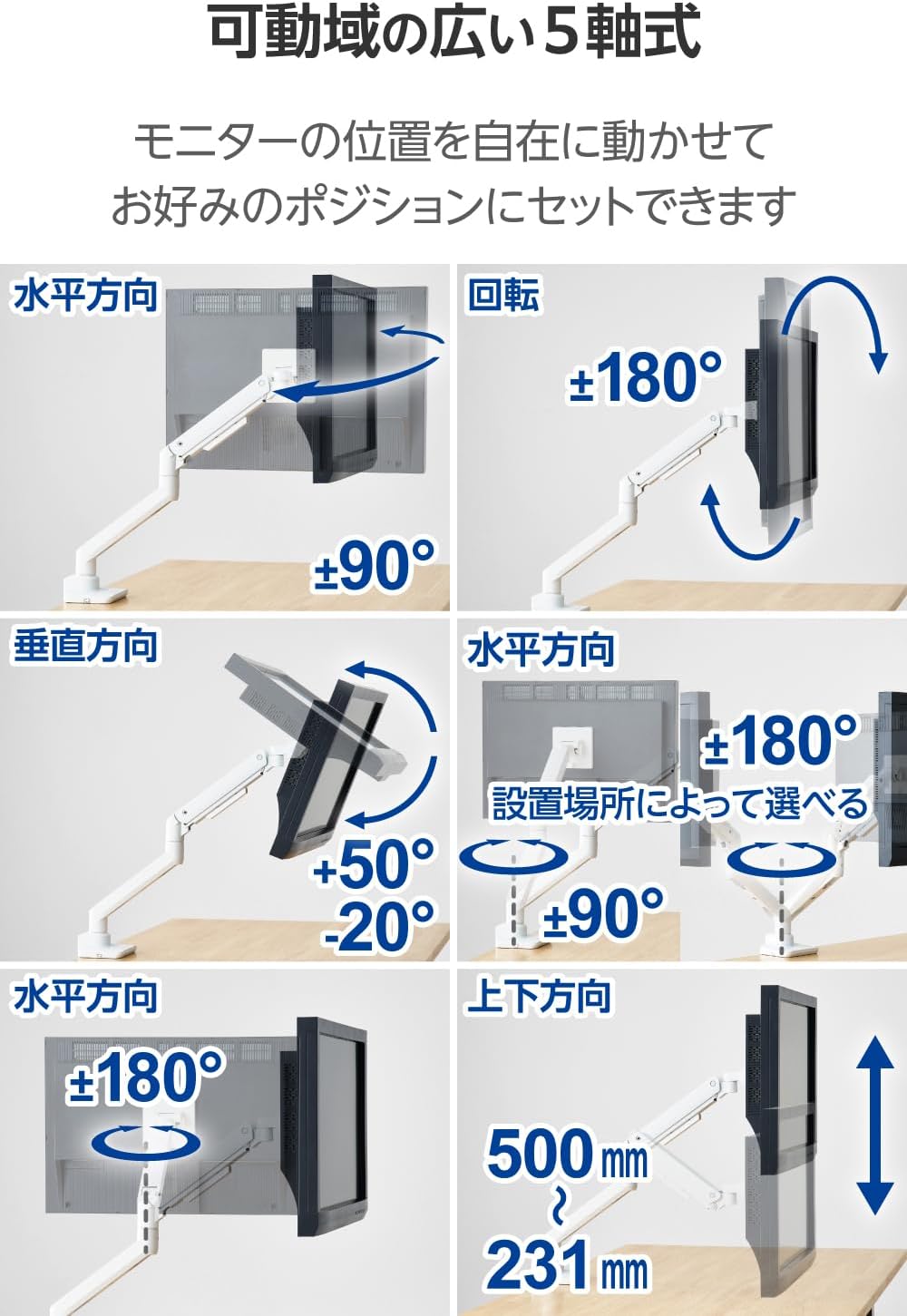

Specifications: ■ Compatible size: 17" - 49" ■ Load Capacity: Approx. 4.4 - 44.1 lbs (2 - 20■Dimensions: Width 22.0 inches (558 mm) x Depth 5.2 inches (132 mm) x Height 22.6 inches (575 ■Weight: Approx. 7.6 lbs (3.6 kg). ■Color: White ■Number of screen installation: 1 screen ■Material: Aluminum, steel, plastic ■ Movable Method: Gas spring type ■ Compatible Standards: VESA (3.0 x 3.0 inches (75 x 75 mm), 3.9 x 3.9 inches (100 x 100 mm). ■ Movement range: Pan: Left 90° / Right 90° Rotation: Left 180° / Right 180° Tilt: Up 50° / Down 20° ■ Mountable top thickness: Clamp (pinched and fixed): 0.5 - 2.0 inches (12 - 50 mm), Grommet (punched through holes): 0.5 - 2.0 inches (12 - 50 mm). ■Fixing method: Clamp type/grommet type ■ Number of Axis: 5 axis ■ Set Includes: Base x 1, Upper Arm x 1, Lower Arm x 1, VESA Mount x 1, U-Shaped Plate x 1, Bottom Plate for Grommet x 1, Cable Holder x 1, Adjuster x 1, Spacer x 1. 【Description】 ■ This is a high load gas spring type counter balance single monitor arm that fits monitors sizes 17 to 49 inches. ■ Utilize the space under the monitor to allow you to use a wide range of desk surfaces. ■ Gas spring type that can be moved with light force. ■ You can freely move the position of the monitor and set it to your preferred position. ■ Single arm type that allows you to install 1 monitor. - 5-axis articulated arm type with a wide range of motion. ■ Compatible with monitors that comply with VESA standards (75mm x 75mm, 100mm x 100mm). ■ Simply attach the VESA mount to the back of the monitor and hook it to the monitor arm hook. ■ The top plate is usually fixed with your hands under the top plate, but this product is easy to fix from the top. ■ You can choose between 2 mounting methods that clamp onto the top plate of your desk and the grommet type which allows you to drill a hole in the top plate and fix it through the bolt. ■ Once the angle of use of the monitor is determined, please tighten the screws on the connection part and fix it. ■ If the monitor faces upward, please adjust the spring behind the monitor. ■ Comes with an arm and integrated cable holder to neatly organize cables from your monitor. ■ The product features smooth movement after the monitor is installed. By adjusting the strength of the gas spring, you can adjust the firmness of moving up and down. ■ This product meets more than one of our own environmental certification standards and displays the "THINK ECOLOGY" mark. ■ We are committed to environmental protection, and the packaging container of the product is made up of only paper, cardboard and polybag. Product inquiries Elecom General Information Center TEL. 0570-084-465 FAX. 0570-050-012 Reception Time / 10:00 - 19:00 24/7

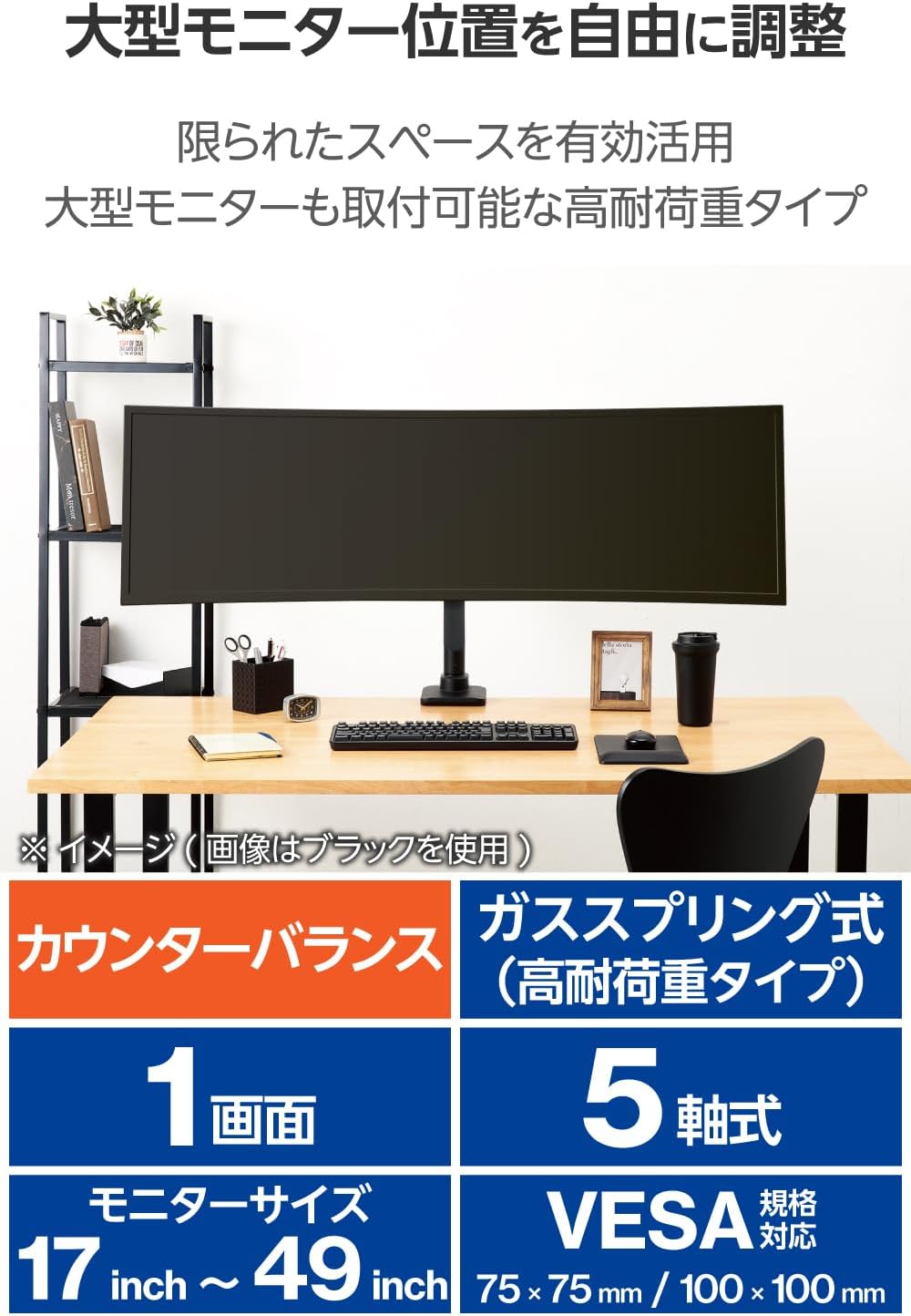

• High capacity gas spring counter balance single monitor arm for monitors 17" to 49"
• 5-axis articulated arm type with a wide range of motion
• Compatible with monitors that comply with VESA (75mm x 75mm, 100mm x 100mm)

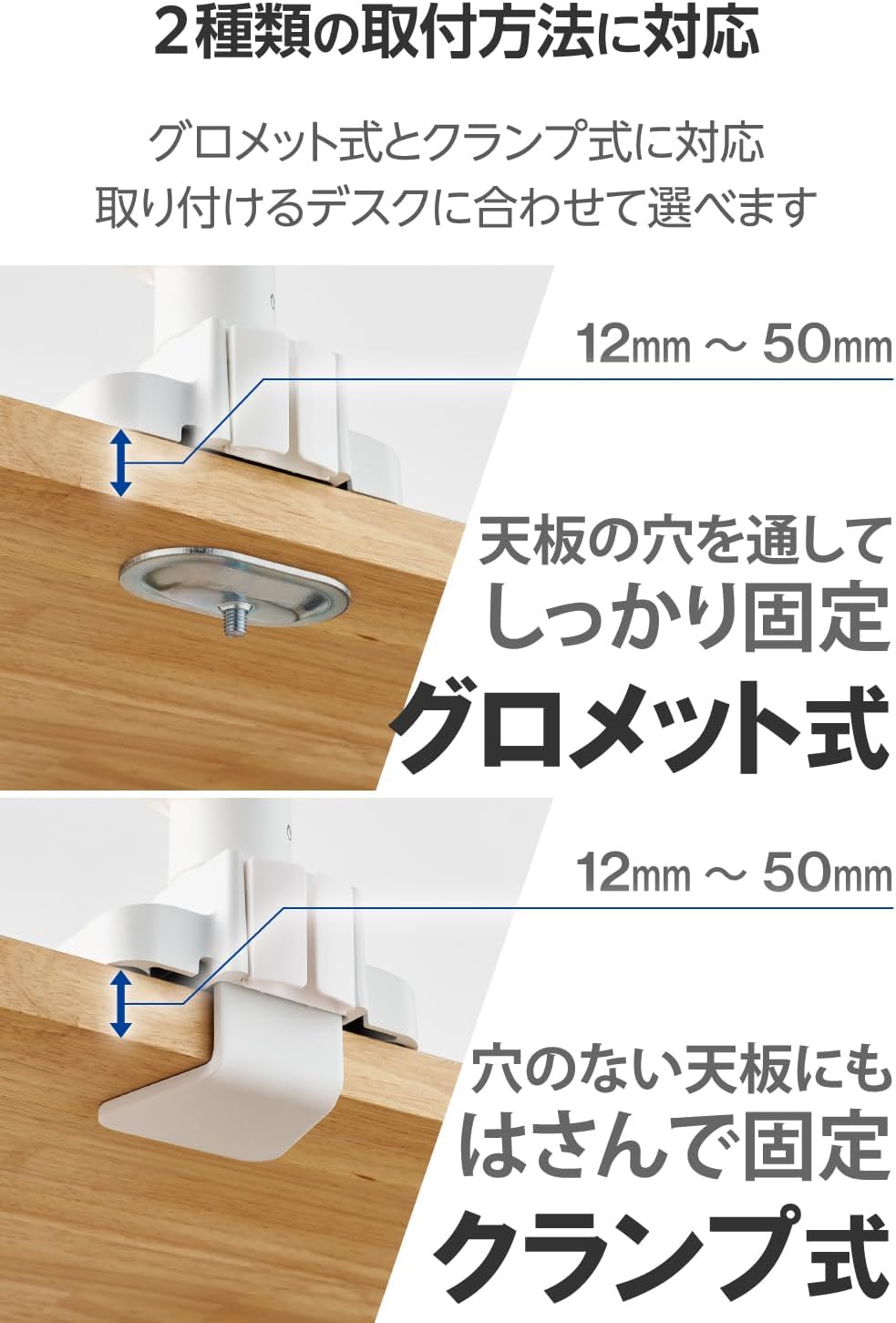

• You can choose between 2 mounting methods: Clamp-on to hold onto your desk top and grommet top to secure it through the bolt. The top plate is usually fixed with your hands under the top plate, but this product is easy to fix from the top
• Arm and integrated cable holder to keep cables neatly organized from your monitor
